W※※00 Series Filter / Regulator
Brand: CKD
Series: W1000/W2000/W3000/W4000/W8000-W
Port size: 1/8 to 1
New Series of 5 μm element for dust removal, and 0.3 μm element for tar removal
Brand: CKD
Series: W1000/W2000/W3000/W4000/W8000-W
Port size: 1/8 to 1
New Series of 5 μm element for dust removal, and 0.3 μm element for tar removal
Brand: CKD
Series: W1000/W2000/W3000/W4000/W8000-W
Port size: 1/8 to 1
New Series of 5 μm element for dust removal, and 0.3 μm element for tar removal
FEATURES
✅ Standard (5 μm) element “Blank”
This long-life element filters out harmful dirt and foreign matter, etc., from air.
✅ Submicron (0.3 μm) element “Y” option
This dedicated element effectively separates tar and carbon. (Non-regenerable).
✅ Long service life element
This element incorporates CKD’s original chemical fiber structure (patent pending), which has a rough surface and gradually becomes finer toward the interior.
Clogging is greatly reduced, and the element life is greatly extended, free of concerns regarding rust.

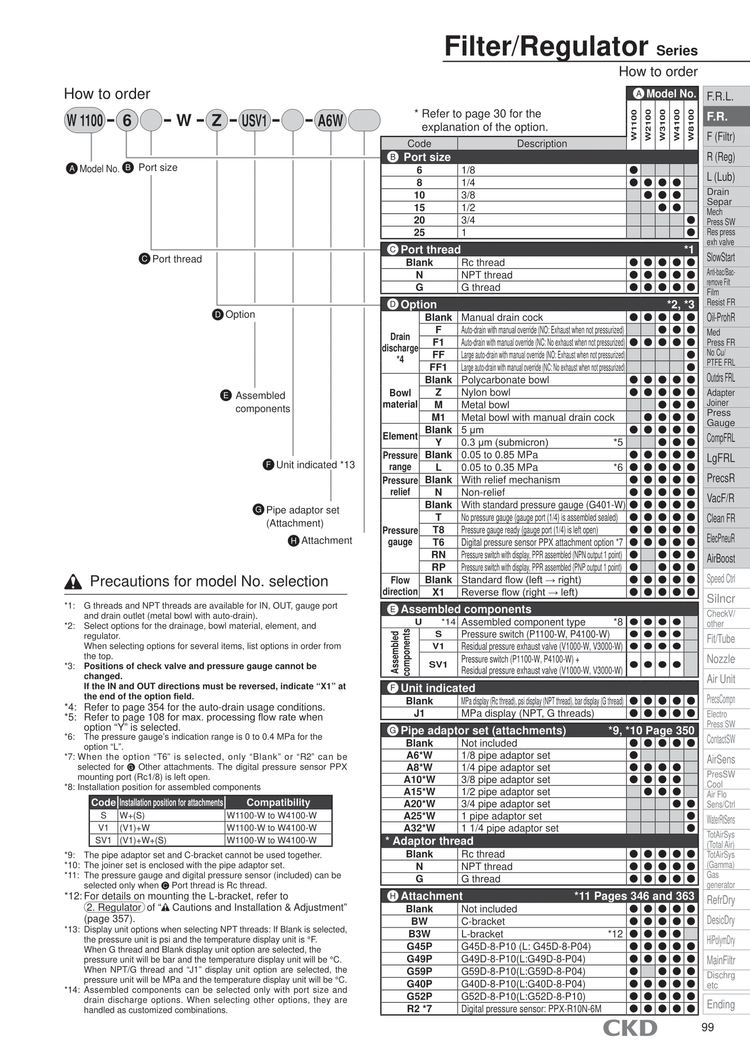

How To Order WXX00 SERIES
4KA Series Datasheet
Download
