FAB Series Direct acting 2, 3-port solenoid valve for compressed air (Special purpose valve)
Brand: CKD
Series: FAB
Port size: M5, Rc1/8 to Rc1/2
Working fluid: Compressed air
Working pressure differential MPa: 0 (≈0 psi, 0 bar) to 1.4 (≈200 psi, 14 bar)
Mounting orientation: Unrestricted
[ Discontinued 2023 12.28 }
Brand: CKD
Series: FAB
Port size: M5, Rc1/8 to Rc1/2
Working fluid: Compressed air
Working pressure differential MPa: 0 (≈0 psi, 0 bar) to 1.4 (≈200 psi, 14 bar)
Mounting orientation: Unrestricted
[ Discontinued 2023 12.28 }
Brand: CKD
Series: FAB
Port size: M5, Rc1/8 to Rc1/2
Working fluid: Compressed air
Working pressure differential MPa: 0 (≈0 psi, 0 bar) to 1.4 (≈200 psi, 14 bar)
Mounting orientation: Unrestricted
[ Discontinued 2023 12.28 }
FEATURES
✅ Lightweight and compact
Aluminum body adopted to achieve lighter weight, compact design with thin coil.
✅ Low power consumption
Low-watt coil used.

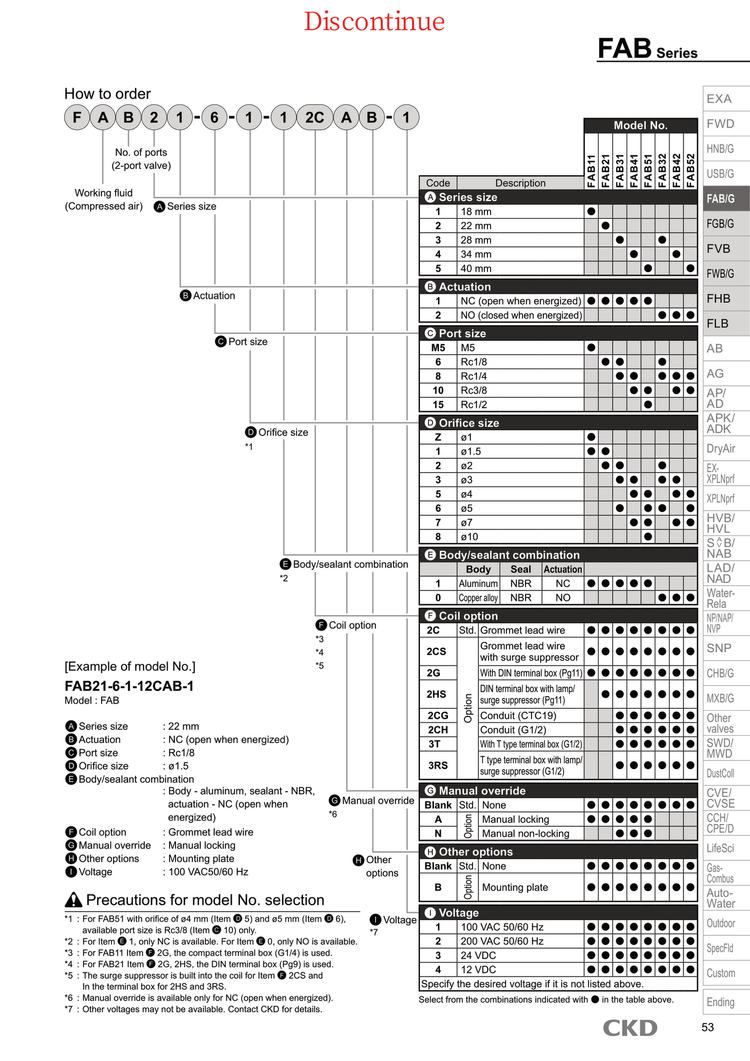

How To Order FAB SERIES
FAB Series Datasheet
Download
