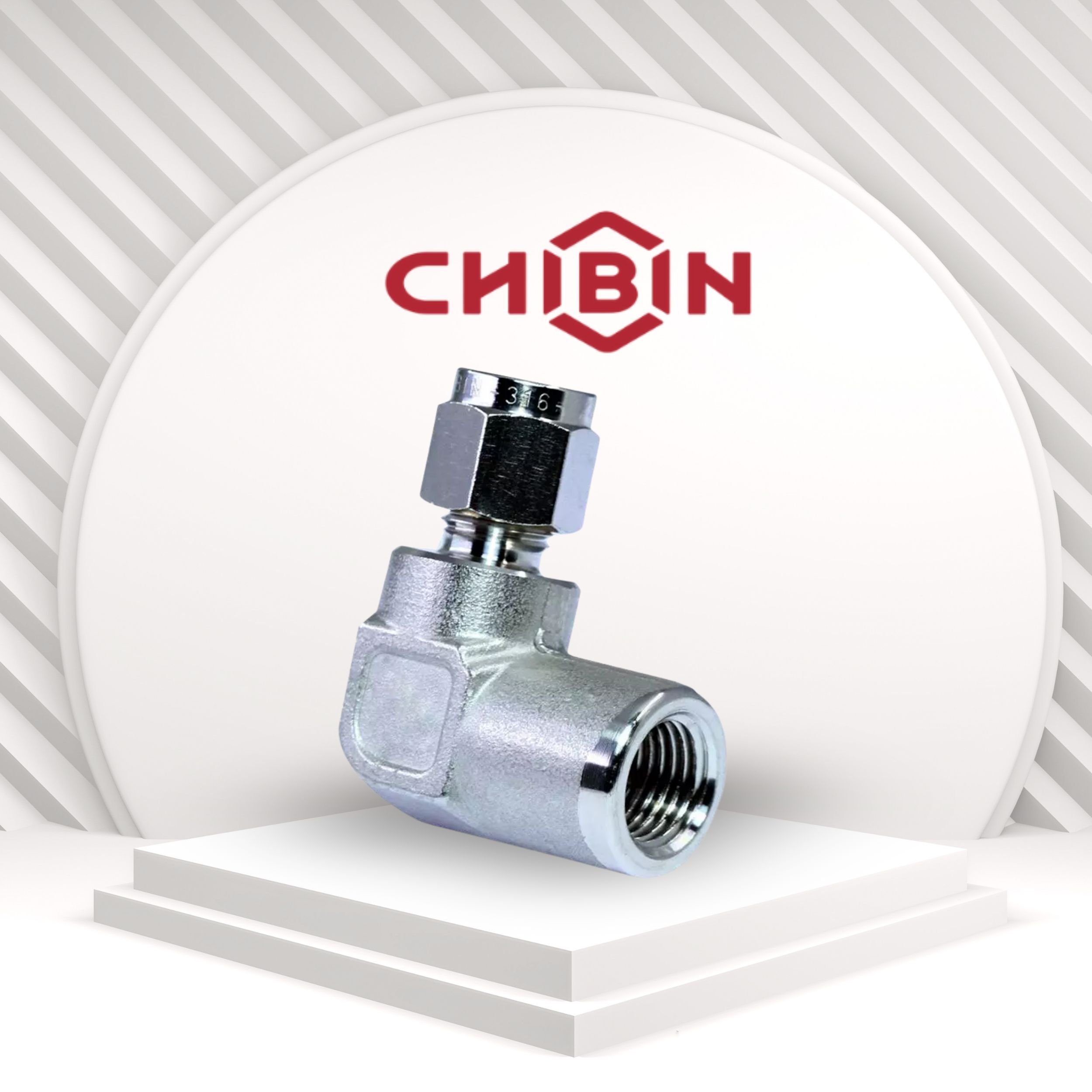

FE Series Female Elbow
Brand: Chibin
Series: FE
Working Pressure:
(1) 1/2 inch (12mm) Below: 210 kgf/cm²
(2) 3/4 inch (19mm) Above: 100 kgf/cm²
Suitable Tube O.D.: 1/8 ~ 1 inch ; 3 ~ 25mm
Thread: PT, NPT
Customized size is also acceptable.
Brand: Chibin
Series: FE
Working Pressure:
(1) 1/2 inch (12mm) Below: 210 kgf/cm²
(2) 3/4 inch (19mm) Above: 100 kgf/cm²
Suitable Tube O.D.: 1/8 ~ 1 inch ; 3 ~ 25mm
Thread: PT, NPT
Customized size is also acceptable.
Brand: Chibin
Series: FE
Working Pressure:
(1) 1/2 inch (12mm) Below: 210 kgf/cm²
(2) 3/4 inch (19mm) Above: 100 kgf/cm²
Suitable Tube O.D.: 1/8 ~ 1 inch ; 3 ~ 25mm
Thread: PT, NPT
Customized size is also acceptable.
Chibin Tube Fittings
Chibin Machine Co., Ltd. is a Taiwan-based manufacturer of high-quality tube fittings and valves, known for precision, durability, and leak-free performance. Serving industries like semiconductors, pharmaceuticals, and petrochemicals, Chibin offers a wide range of products including double ferrule fittings and quick-connect couplings. With strict quality control and adherence to international standards, Chibin ensures reliable solutions for demanding fluid and gas systems.
Application / Features
Suitable for instrumentation, liquid and gas tubing.
※Suitable for food and medical equipment subject tospecial treatment.( specific to operation conditions )
Metal sealing, double ferrule design, heat and shock resistance, corrosion and high temperature resistance.
Multiple type options, fast and easy installation, and reusable.
PARTS
