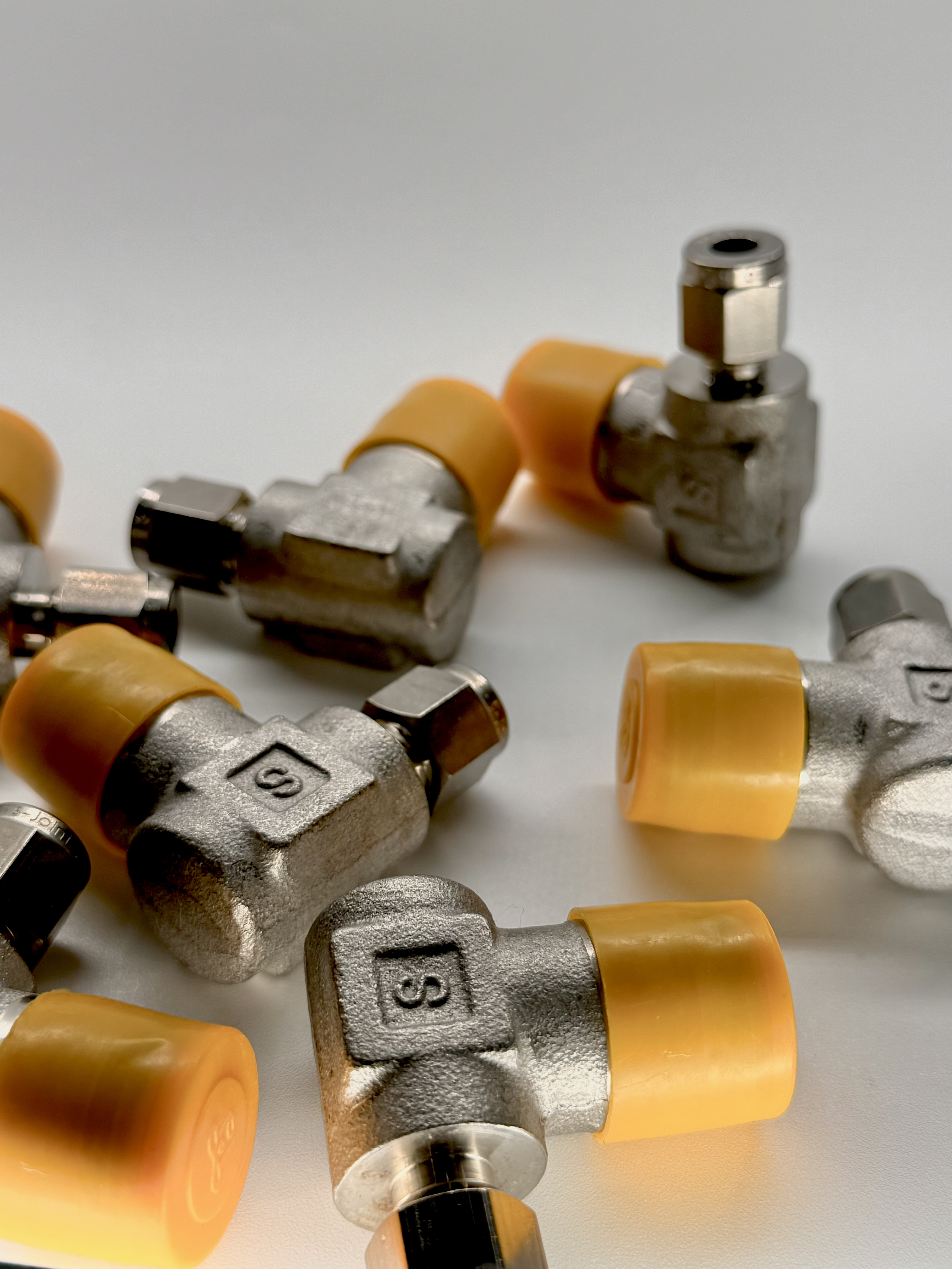

ME Series 316 Stainless Steel Tube Fittings Male Elbow
Brand: Chibin
Series:ME
Working Pressure:
(1) 1/2 inch (12mm) Below: 210 kgf/cm²
(2) 3/4 inch (19mm) Above: 100 kgf/cm²
Suitable Tube O.D.: 1/8 ~ 1 inch ; 3 ~ 22mm
Thread: PT, NPT, M
Customized size is also acceptable.
Brand: Chibin
Series:ME
Working Pressure:
(1) 1/2 inch (12mm) Below: 210 kgf/cm²
(2) 3/4 inch (19mm) Above: 100 kgf/cm²
Suitable Tube O.D.: 1/8 ~ 1 inch ; 3 ~ 22mm
Thread: PT, NPT, M
Customized size is also acceptable.
Brand: Chibin
Series:ME
Working Pressure:
(1) 1/2 inch (12mm) Below: 210 kgf/cm²
(2) 3/4 inch (19mm) Above: 100 kgf/cm²
Suitable Tube O.D.: 1/8 ~ 1 inch ; 3 ~ 22mm
Thread: PT, NPT, M
Customized size is also acceptable.

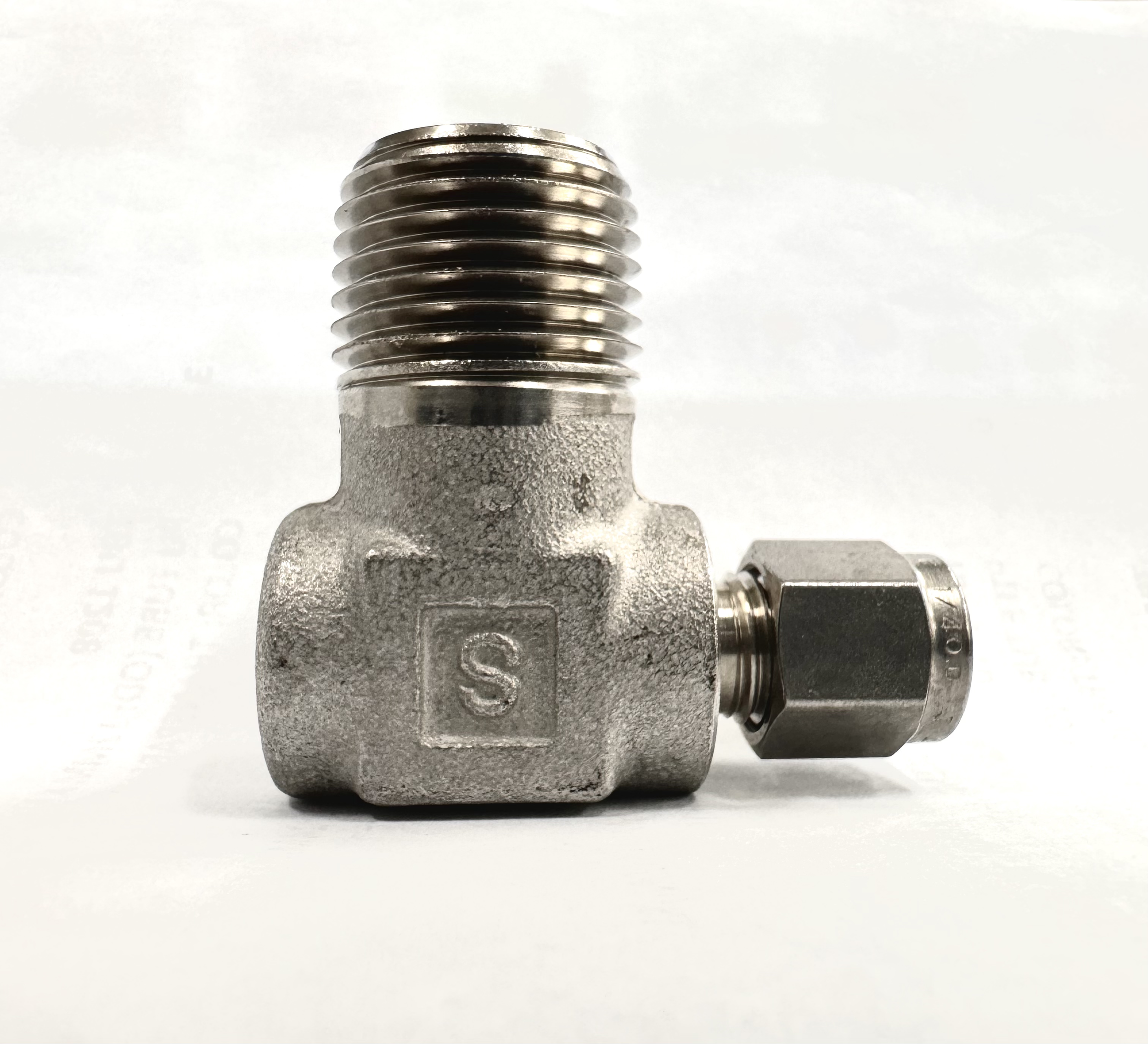

A male elbow is used to connect tubing at a 90-degree angle, great for tight spaces and changing the direction of fluid flow in petrochemical and chemical processing industries. A 316 stainless steel male elbow is a type of tube fitting that connects a tube to equipment at an angle. It has external threads on one end and a compression fitting on the other end.
Features
Double-ferrule metal to metal sealing, leak-free design.
Nut threads are electroplated to reach wear resistance.
316 stainless steel material features resistance to heat, impact, and corrosion.

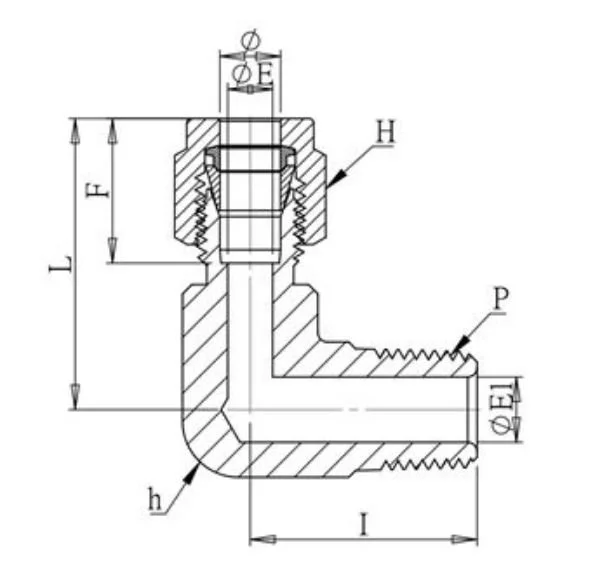

Dimensions
